Printable Flexible Ferro

Functional Materials & Devices

Printable Flexible Ferro (Magnetic receptive material ) – also called MACO FF Steel film series has no magnetic strength itself, but can magnetize with permanent magnets.Newlife magnetic receptive material is made from eco-friendly materials that meet RoHS and EN71-3 standards. It is a kind of polymer composite material, made of a layer of magnetic receptive raw material tightly bound with a layer of printable media under Newlife’s patent technology. It is the thinnest and lightest magnetic receptive film in Newlife’s products.

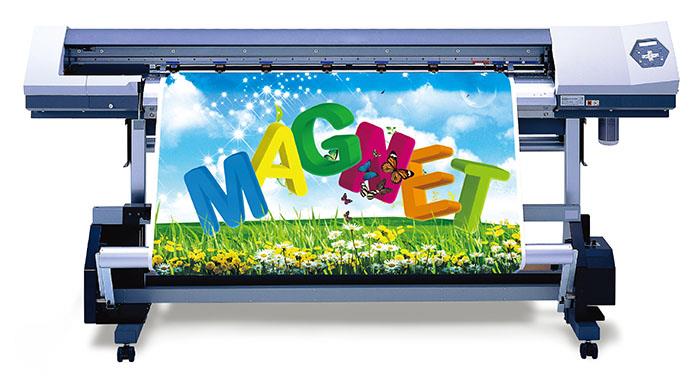

FF Steel film series is also a kind of printable media. The printable liners on FF products are applied with PET, PP, PVC, canvas, and coated paper etc. It can be printed as easy as traditional printable media, and get high quality images, suitable for wide print processes, such as digital inkjet print for UV curable, eco-solvent, water-base, HP Latex, laser print of HP Indigo and TONER, offset print, flexo and label print, screen print, etc.

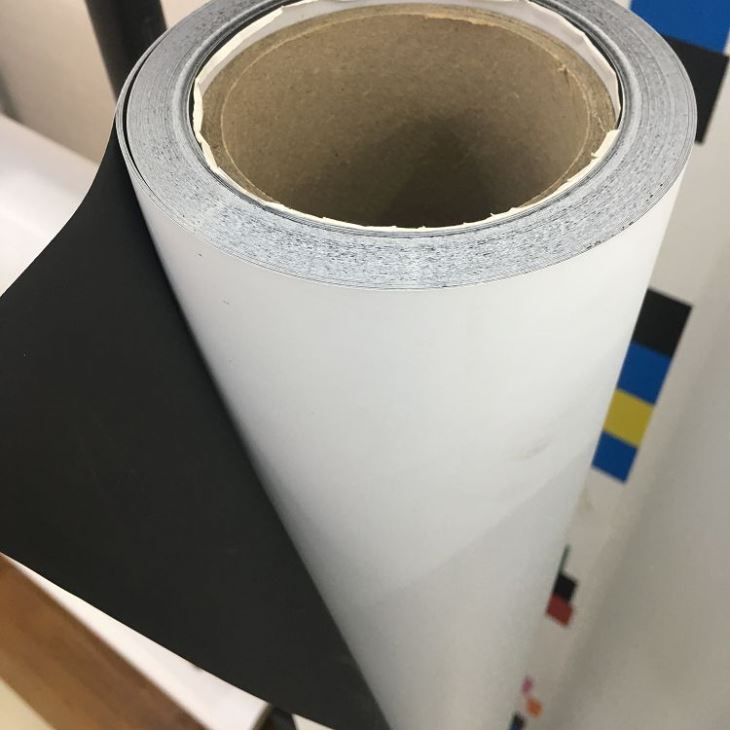

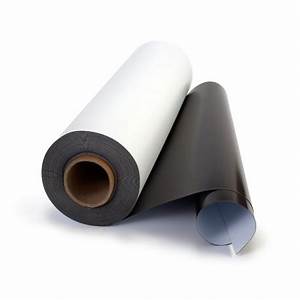

magnetic-sheet-roll49306956351.jpg                                                     软铁.jpg



                                                      60 inch printable magnetic material.jpg





Advantage of Magnetic Receptive Material

●Working as magnetism principle on magnets, easy to apply, remove and change without residue.

●Light, soft and super thin, easily printed as normal media.

●Good weather resistance, excellent for durable indoor display, big size is available.



Printable Ferro Plain can be roll or sheet according to customer's requires.


Main product list of printable ferro plain




Part No.

Description

MAGNETIC   DATA

Thickness
    /Weight

Length
    (M)

Width
    (mm)

FF-ST340

steel film with white   PET, compatible   for (eco)solvent, Latex, UV ink

≥3.5g/cm2

0.18mm
    340GSM

30/50

914, 1070, 1270, 1370

1524, 1626

FF-ST540 VM

steel film with white   PET, compatible   for (eco)solvent, Latex, UV ink

≥4.2g/cm2

0.3mm
    540GSM

30

1270, 1370

1524, 1626

FF-SP320

steel film with white   PP, compatible   for (eco)solvent, Latex, UV ink

≥3.5g/cm2

0.26mm
    320GSM

30/50

914, 1070, 1270, 1370

1524

FF-WP320

steel film with white   PP, compatible   for Latex, pigment, UV ink

≥3.5g/cm2

0.26mm
    320GSM

30/50

1270, 1372

1524

FF-UP320

steel film with white   PP, compatible   for UV ink

≥3.5g/cm2

0.23mm
    320GSM

30/50

1070, 1270, 1370

1524

FF-UP380 VM

steel film with white   PP, compatible   for UV ink

≥4.2g/cm2

0.28mm
    380GSM

30/50

1070, 1270, 1370

1524

FC-WCV470

steel film with white   canvas,   compatible for dye, pigment , Latex, UV ink

≥3.5g/cm2

0.38mm
    470GSM

30

1070, 1270

1524

FA-AP540

Mag-ART substrate,   steel film with   white artpaper, compatible for pigment ink

≥3.5g/cm2

0.4mm
    540GSM

15

914

FA-CV680

Mag-ART substrate,   steel film with   white canvas, compatible for pigment ink

≥3.5g/cm2

0.5mm
    680GSM

15

610, 914, 1270, 1524

FA-MRC510

Mag-ART substrate,   steel film with   matt RC photo paper, compatible for pigment ink

≥3.5g/cm2

0.36mm
    510GSM

15

600, 900




Standard Size of Magnetic Receptive Material

Length

Width

30 M ( 100 Ft )

914mm ( 36’’ )

50 M ( 165 Ft )

1070mm ( 42’’ )


1270mm ( 50’’ )


1370mm ( 54’’ )


1524mm ( 60’’ )


1626mm ( 64’’ )


Package:

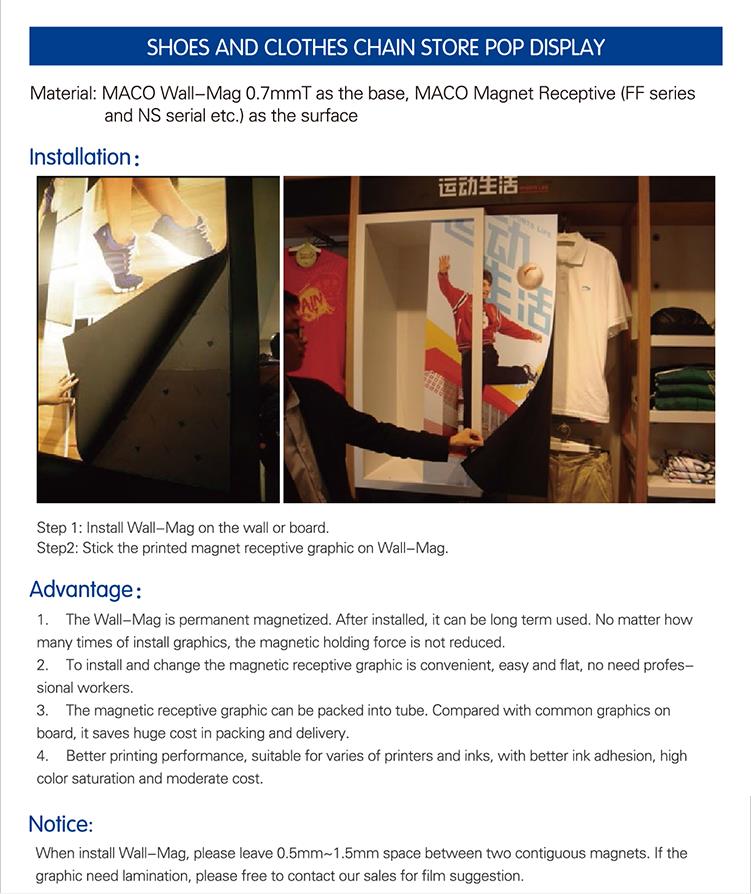

Application of Flexible Ferro(Magnetic Receptive Material): MACO POP System




Process and Storage:

Working condition: temperature 15℃ to 30℃, and relative humidity 30% to 60%.

Application condition: temperature change is within 20℃ daily, relative humidity change is within 30%.

Storage condition: closed preserve avoiding sunlight, in temperature 10℃ to 35℃, relative humidity 20% to 70%

Shelf life: 12 months under storage condition. Unfinished material should be seal-packed, and used up within one month.
