Functional Materials & Devices

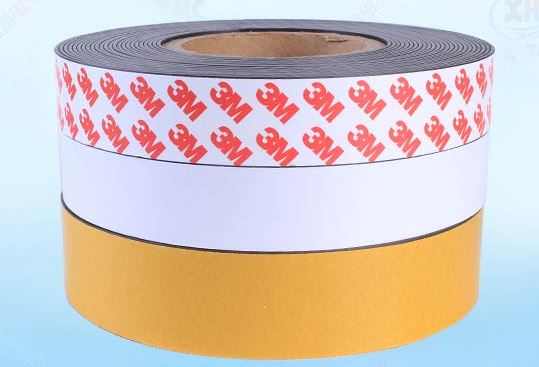

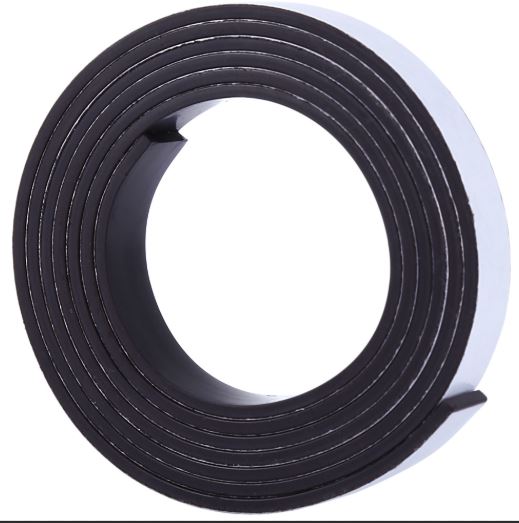

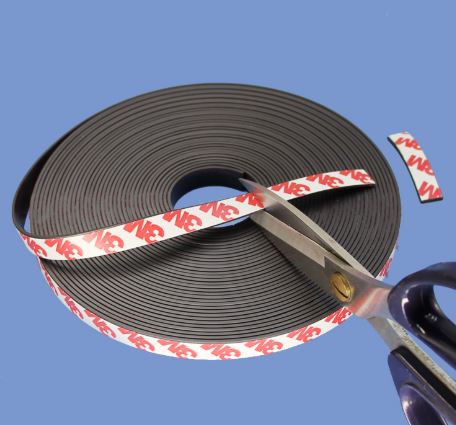

Flexible Magnetic Strips with Adhesive
Made of rubber magnet strip coated with adhesive, accordance with Quality/Safety Certifications: ISO9001, MSDS
Features of flexible magnetic strips with adhesive
1) Sizes: 12.7 X 1.5, 12.5 X 1.5, 19 X 1.5, 25.4 X 1.5 mm
2) Different lengths according to the customer
3) Property: Isotropic and anisotropic
4) Chinese Adhesive, Tessa, 3M, as well as other adhesive for options
5) C-profile Magnet strip
Size: 10X1, 15X1, 20X1, 25X1, 30X1, 40X1, 50X1 available, the different sizes could be customized as requested.
Length: 30 or 50 meters per roll, Different lengths according to the customer
Property: Isotropic
Magnetization: Single side and multi-poles
Magnetic strips used in shower room sealing
| Specification | Pole | L(mm) | W(mm) | Appealing iron weight per 0.4 mm plastic surface(g) | Br (Gs) |
| 8× 4 | 2/3 | 8± 0.15 | 4± 0.07 | ≥ 80/≥ 85 | ≥ 650/≥ 720 |
| 9× 2 | 3 | 9± 0.15 | 2± 0.07 | ≥ 68 | ≥ 560 |
| 9× 2.6 | 3 | 9± 0.15 | 2.6± 0.07 | ≥ 85 | ≥ 620 |
| 9× 3 | 3 | 9± 0.15 | 3± 0.07 | ≥ 90 | ≥ 680 |
| 9.8× 3.1 | 3 | 9.8± 0.15 | 3.1± 0.07 | ≥ 95 | ≥ 680 |
| 10× 3 | 3 | 10± 0.15 | 3± 0.07 | ≥ 95 | ≥ 680 |
| 10× 5 | 2/3 | 10± 0.15 | 5± 0.07 | ≥ 100/≥ 110 | ≥ 650/≥ 720 |
