Flexible Magnets Plain Brown

Functional Materials & Devices

Flexible Magnets Plain Brown


Newlife's Flexible magnet is made of ferrite powder bonded with macromolecule compounds, such as CPE, NBR, CR, PVC, nylon, and PP etc. It is also called rubber magnet or plastic magnet because of its bond materials. It features in flexibility characteristics of any permanent magnetic materials, and thus can be made into rolls, sheets, strips, blocks, rings and so on, through extruding, calendaring, injecting, molding. It can also be laminated with pvc sheet, self-adhesive tape, coated with UV, or 4-color printed and diecutted into any shape.



Flexible magents can be classified as both standard magnetic energy (isotropic) and high magnetic energy (anisotropic) according to their magnetic properties.

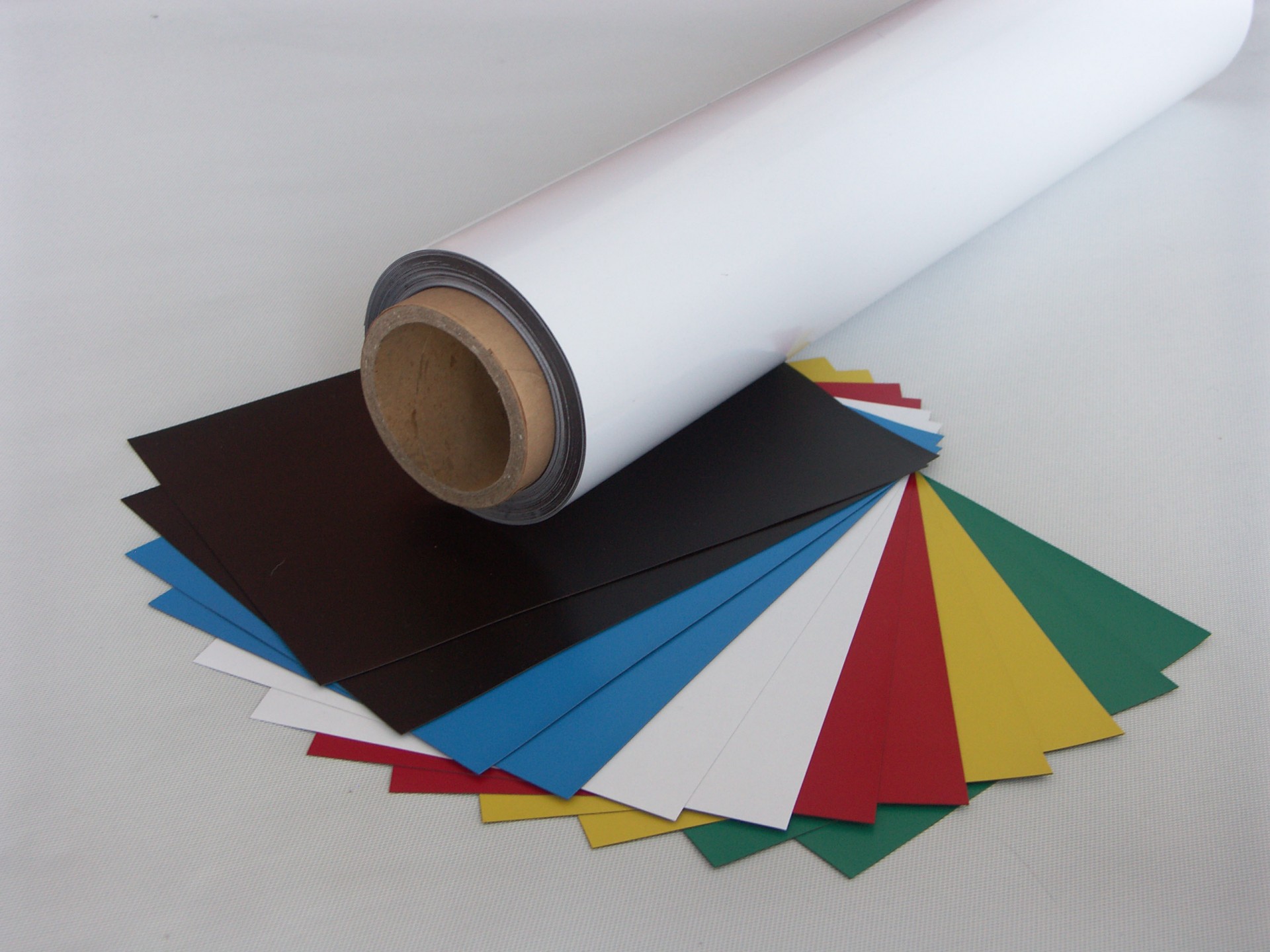

Flexible magnets can be classified as plain brown magnetic sheeting, printable magnetic sheeting, and magnetic sheeting with adhesive according to their finish or laminates.
Newlife’s flexible magnets are made from eco-friendly materials that meet RoHS and EN71-3 standards

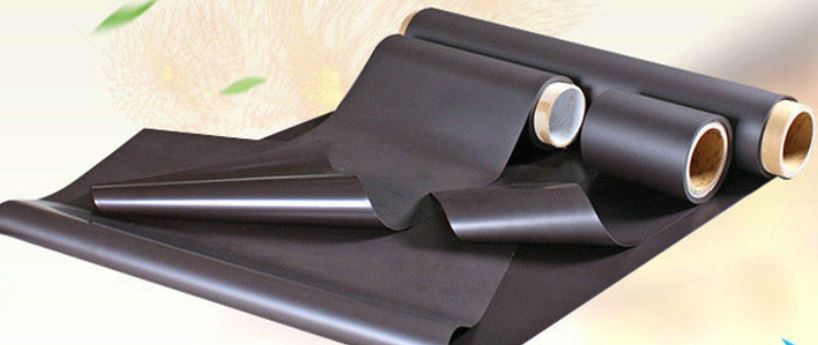

Newlife's Flexible Magnets Plain are flexible ferrite magnet, one side magnetized and coated by UV oil. It can be laminated with printable films and adhesive. it can work on metal surface, such as iron board.


                        image                                      image.png



The minimum thickness is only 0.2mm ( 8mil) and the maximum width is up to 1.52M(60''). Newlife has different levels magnetic material with different energy, customers can choose standard energy (isotropic) magnets and high energy (anisotropic) magnets.



Specifications:

 Material is available in Isotropic and Anisotropic grade
 Material is available in cut sheets and rolls
 We can die cut the material to any shapes or sizes according to customer’s requirement





Min.Size

Standard   Size

Max.Size

Length

0

30M/100

No   Limitation

Flexible Magnets In Roll

Width

0

610/620/1000/1200mm/1524mm

1300mm

0

24”/40”

51”

Thickness

0.3mm

0.4/0.5/0.6/0.7mm

2mm

0.012”

0.015”/0.02”/0.03”

0.078”

Flexible Magnets In Sheet

Width

0

610/620/1000/1200mm/1524mm

1300mm

0

24”/40”

51”

Thickness

0.3mm

0.4/0.5/0.6/0.7mm

8mm

0.012”

0.015”/0.02”/0.03”

0.315”



Magnetic property

Max. Energy

   Product

Remanence

Coercive Force

Tensile

Strength

(BH)max

Br

Hcb

Hcj

Kg/cm2

MGOe

Kj/m3

KGs

MT

KOe

KA/m

KOe

KA/m

0.5-0.7

4.1-5.7

1.5-1.7

150-170

1.1-1.5

88-119

1.9-2.5

151-199

40-150



Typical physical properties:

Working temperature: Operation temperature range is   recommended from –15ºF to 160ºF

(-26ºC to 71ºC).

Flexibility: At 68ºF (20ºC), our high-quality magnetic   material can be coiled to a 1/2" ( 12.7mm ) radius

without cracking.

Hardness: Shore D35.

Machinability: Die cuts and knife cuts cleanly and   easily.

Density: 3.6 g/c.

Multi-Pole Spacing: 12.7 poles per inch.
